Non-Metallic And Metallic Taping/Wrapping Unit
The most advanced motor drive, stepless pitch adjustment, electromagnetic mechanical dual tension
CONCENTRIC TAPING UNIT
TANGENTIAL TAPING UNIT
STEEL TAPE WRAPPING UNIT
NON-METALLIC TAPING UNIT
Cable Taping Machine
Cable Taping and Armored Machine

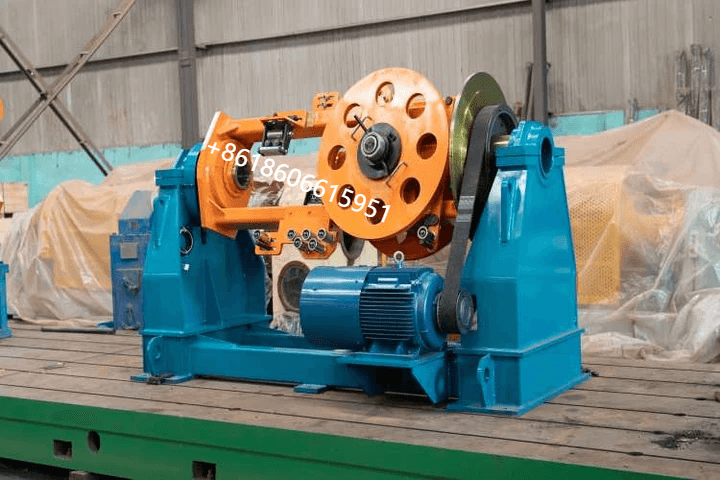

Steel Tape Cable Armoring Machine
KRB800 Steel belt taping machine
- The unit is mainly used for laying steel tape armour on the outer layer of cable
- Taping head hole diameter :100mm
- Steel belt width: 20-60mm
- Pitch: 11-192mm (stepless adjustable)
- Taking reel core size: 200×120×30mm
- Reel diameter: 800mm
- Take reel qty: 2 reel
- Rotation speed: 188-419r/min
High speed Taping Machine
High speed 3 reel Half-cut taping machine
- Taping material: Non-woven fabrics, composite materials, etc
- Taping belt width: 20mm-60mm
- Take bobbin size: 500x80x(20～60)mm
- Taping speed: 606r/min
- Drive form: Inverter motor
- Brake form: Pneumatic clamp type
- Parking: pulse type
Half-cut Taping Machine
3 Head Half-cut taping machine
- Taping material: Non-woven fabrics, composite materials, etc
- Taping belt width: 20mm-60mm
- Take bobbin size: 400×52×(20-60)mm
- Taping speed: 420r/min
- Drive form: Inverter motor
- Brake form: Pneumatic disc type
- Parking: pulse type
- Taping pitch: Infinitely adjustable
Copper Tape Armouring Machine
Concentric high speed copper tape screening machine
- Taping material: copper tape.
- Taping belt width: 20mm-60mm
- Take bobbin size: 630×180×(20-60)mm
- Taping speed: 800r/min
- Drive form: Inverter motor
- Tension: hysteresis
- Taping pitch: Infinitely adjustable
Tangential type tape wrapper
Wrapping materials: polyester tape, non-woven fabric, aluminum plastic composite tape, glass cloth, semi conductive cloth
- Max diameter of applicable tape: 500-630mm
- Applicable tape core diameter:80mm
- Applicable tape width: 16-40mm
- Number of discs: 2 pads
- Tension form: hysteresis tension
- Max speed of wrapping head: 650r/min
- Tape pitch: 0-200 (infinitely adjustable)
- Winding motor power: 11KW (AC
Hydraulic pay-off and take-up with traverse integrated machine
Use for cable or steel wire rope stranding machine, also rewinding line.
- Type: horizontal wire take-up and traverse machine
- Winding speed: 0-100m/min
- Reel specifications: 1000mm-1600mm (national standard)
- Reel width: 750mm-1180mm (national standard)
- Load weight capacity: 6000kg
- Reel lifting: hydraulic type
- Top tip shaft: Tower type top, the top shaft head is quenched and hardened
- Clamp reel shaft: circular slide rail type, two-way opening and closing, clamping, torque motor clamping and release
- Control: It has two modes of speed control and tension control, and can be forward and reverse (foot-operated jog)
- Winding motor: AC variable frequency motor + K reducer
Pay-off and Take-up,Caterpillar
Pay-off, Take-up, Caterpillar

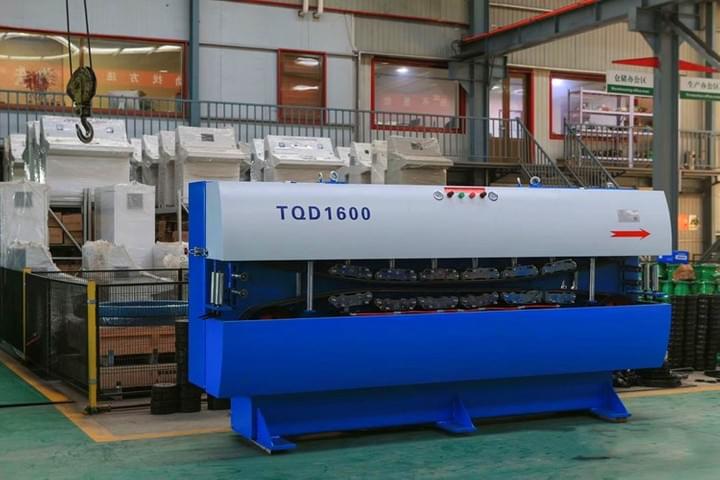

Caterpillar pneumatic traction device
- Mainly used for various cable production lines for single machine or front and rear double traction.
- Max traction weight: 200~15000kg
- Traction speed change grade: 36 class
- Traction cylinder logarithm: 3-14pairs
- Belt Width: 70-240mm
- Motor Power: 3-55kw
Portal Pay-off and Take-up
Autommotive cable Portal Type Traversing Take Up Machine
- Application: This machine is Suitable for winding wire, loading/unloading bobbin,pay-off and take-up automatically for electronic wire.
- Pay-off&Take up bobbin: 800-5000mm
- Speed(m/min): 35-120mpm
- Application diameter: 20-200mm
- Loading capacity: 8-35 Ton
Column Type Pay-off and Take-up

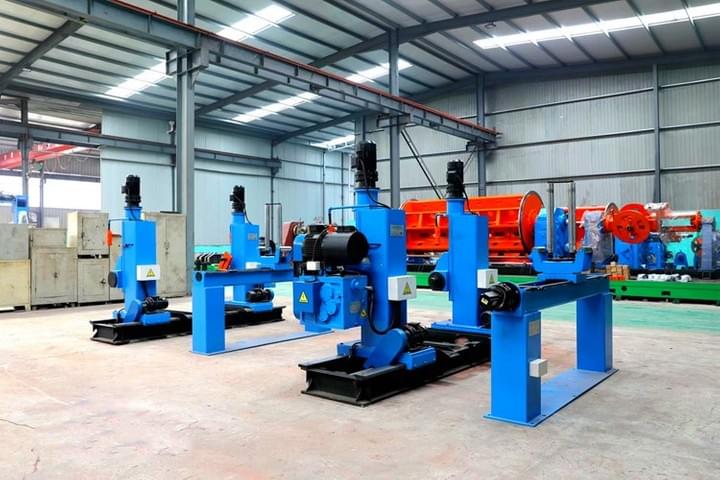

Cable Shaftless Type Traversing Take Up Machine
- Applied to extrude core wire, electrical cable manufacturing machine.
- Bobbin diameter: PN800-3150
- Wire diameter: 25-100mm
- Speed(m/min): 3.27-47.6mpm
- Application diameter: Φ25-100mm
- Loading capacity: 4-18 Ton
Floor Movable Cable Spooler Machine

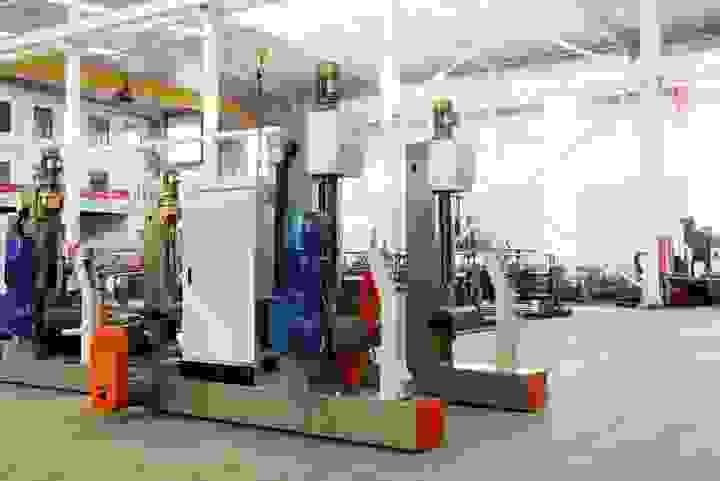

Ground Beam Type Portal Take-up With Traverse Machine
- Portal movable structure
- Bobbin size:PN1250 to PN4000
- Mechanical protection and electrical protection devices.
- Bobbin clamping by the motor,
- AC motor drive, stepless variable.
- PLC automatically control the tension and direction.
Cable Rewinding Machine
Cable Drum Storage And Unwinding System With Rewinding Machines
Cable Rewinder for Steel Wire Rope
- Shaftless pay off rack.
- Pay-off tension: electromagnetic tension passive pay-off.
- Applicable cable reel models: PN1000-PN500.
- Pneumatically tightens and loosens the spool.
- Shaftless single bobbin take-up and traverse line rack.
- Applicable cable reel models: PND500-PND630
- Take-up motor power: 4KW (AC).
- Traverse form: servo cable arrangement.
- Traverse wire head with straightener
