PN1250-PN2500 Portal Type Take-up With Self-traversing System

PN1250-PN2500 Portal Type Take-up With Self-traversing System

Bobbin flange diameter, min – max. 1250-2500mm.
Bobbin overall width, min – max 750-1900mm.
Bobbin weight max 15 ton.
Linear speed: 50 m/min.
More Details

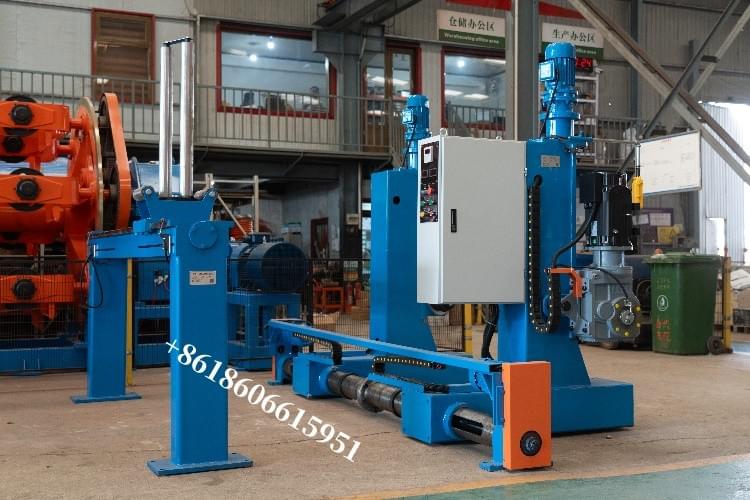

PN1250-PN2500 Portal Type Take-up With Self-traversing System

The take-up machine is a gantry type take-up machine, which is automatically moved on the track by a servo motor to ensure accurate winding of the cable. The reversing position is controlled by an encoder and protected by limit switches.

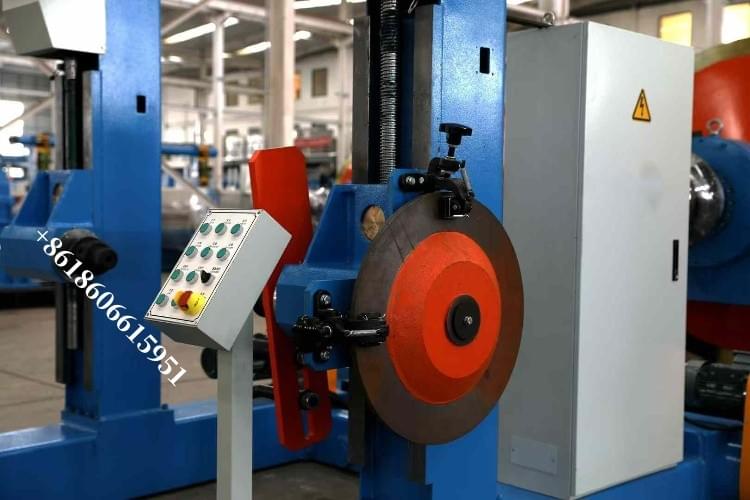

The bobbin is clamped by a tailstock, which can be closed/opened and moved up and down by an independent servo motor. The winding can be controlled by tension or speed to accommodate a variety of cables.
The machine is equipped with dedicated control panels, one mounted on a separate column and the other two on the side columns. The machine is also equipped with adjustable cable guides.

PN1250-PN2500 Portal Type Take-up With Self-traversing System

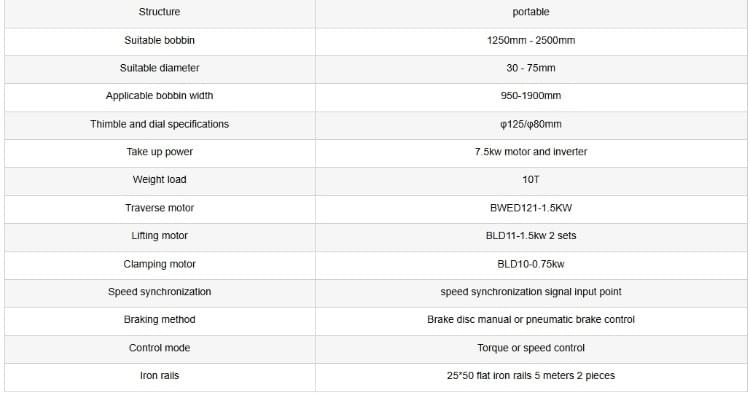

Floor Movable Take-up with traverse:
Loading and unloading method is a portal movable structure.
It is equipped with mechanical protection and electrical protection devices.
Bobbin clamping is realized by the motor, and it is equipped with mechanical protection and electrical protection device.
The Take-up is the AC motor drive the gearbox to drive bobbin, and the gearbox is infinitely variable.
PLC control with coil diameter calculation function can automatically control the tension and reverse direction.
The traverse is driven by the motor to reduce the gear box and the guide wheel, to control the pitch of the traverse.
Torque control and speed control.


PN1250-PN2500 Portal Type Take-up With Self-traversing System
PN1250-PN2500 Portal Type Take-up With Self-traversing System
