Drum Twister Mnaufacturer - Drum Type Laying-up Machine Supplier

Drum Twister

 High Speed Drum Twister Line for Big Cross-section Cable.

OFFER

Technical Parameter

Application of Drum Twister

drum twister technical parameter from Ningbo Capstian Technolgy Co.,Ltd

APPLICATION 1:
The Drum Twister line is used for Laying-up of low and high voltage cables both circular / sector either Aluminium or Copper material. It can also be used for round Wire Armouring.

APPLICATION 2:
Pay-offs: Fork or disc type.
Sector corrector and formation blocks.
Longitudinal tapes of semiconductor tape (Milliken type).
Straighteners for steel wires when Armoring.
Metallic and non-metallic taping heads.
Rotating caterpillars for pulling capacities up to 10 Ton.
Take-ups in fork or disc type. Bob. Dia. up to 5 m and 50 Ton.

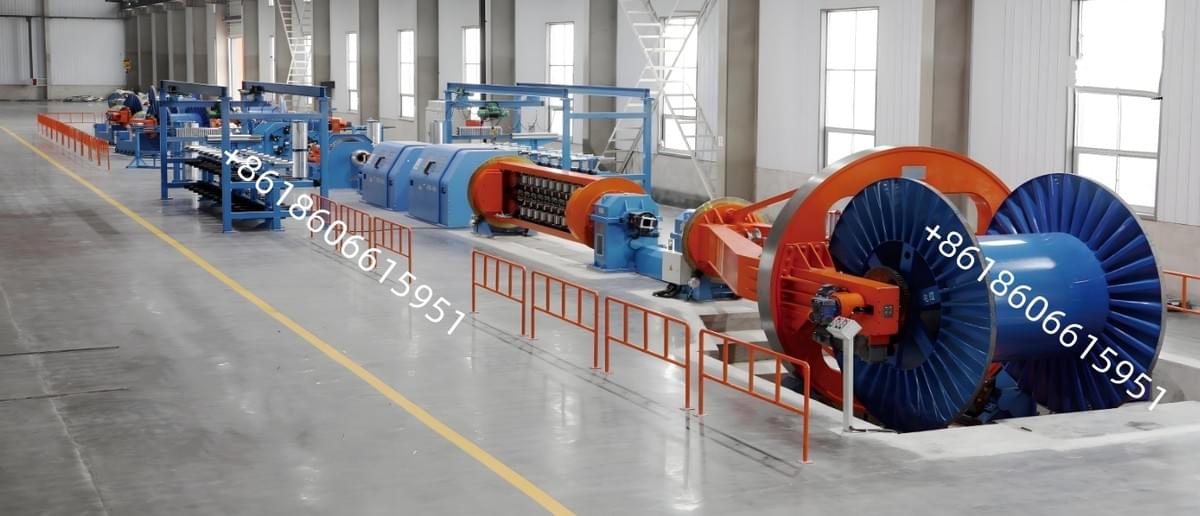

Layout of Drum Type Laying-up Machine

Running Work Video

 Drum Type Cabling Machine

Main Component

| Rotating Pay-off | Guiding Unit | Assembling Roller | Steel Wire Pay-off Stand |

| Filling Stand | Armouring Head | Die Holder | Taping Head | Rotating Caterpillar | Drum Type Take-up |

|Electrical Control System | Transmission System |

The Model of Drum TwisterDrum Type Laying-up Lachine For Stranding Large Round and Section Cable

FAQ

Common Ask For Drum Twister

What information you provide if you want to get price for drum twister?

Pay-off number and size
Take-up bobbin size
Armouring wire quantity.
Wire diameter and type

What main application of drum type laying up machine(drum twister)？

Drum twister is mainly used for large circular and fan-shaped lines. Generally, the factories purchasing this kind of equipment are of large scale. The ordinary cable laying machine can not meet the needs of production, and its cabling speed is faster, but its only disadvantage is that the cost is very high.

What service we provide when the drum twister arrive your factory？

Including installation, debugging, know normal operation.
Provide lifelong free technical guidance
Low cost wearing parts replacement service
Operation guidance of buyer's staff
Regular operation inspection service
