Cable Laying-up Machine
Ideal for producing a wide range of cables, including low-voltage and high-voltage power cables, communication cables, and specialty wires.
Suitable for both small-scale and large-scale cable manufacturing operations.

Get a Quote
Different Driving Form and Structure
Cable laying machines are designed with various driving forms and structural configurations to meet the diverse needs of cable manufacturing.
Each type offers unique advantages, ensuring high efficiency, precision, and reliability in cable production.

Independent Motor Driving
AC motor drive stranding cage, haul-off, take-up separately
Pre-twist Motor Type
Each cradle have a independent pre-twist motor for sector cable.
Big Bearing High speed
High speed of thin oil lubricated large bearings max 50r/min
Ground shaft driving
All machine driving a whole shaft by a motor, tug wheel support cage

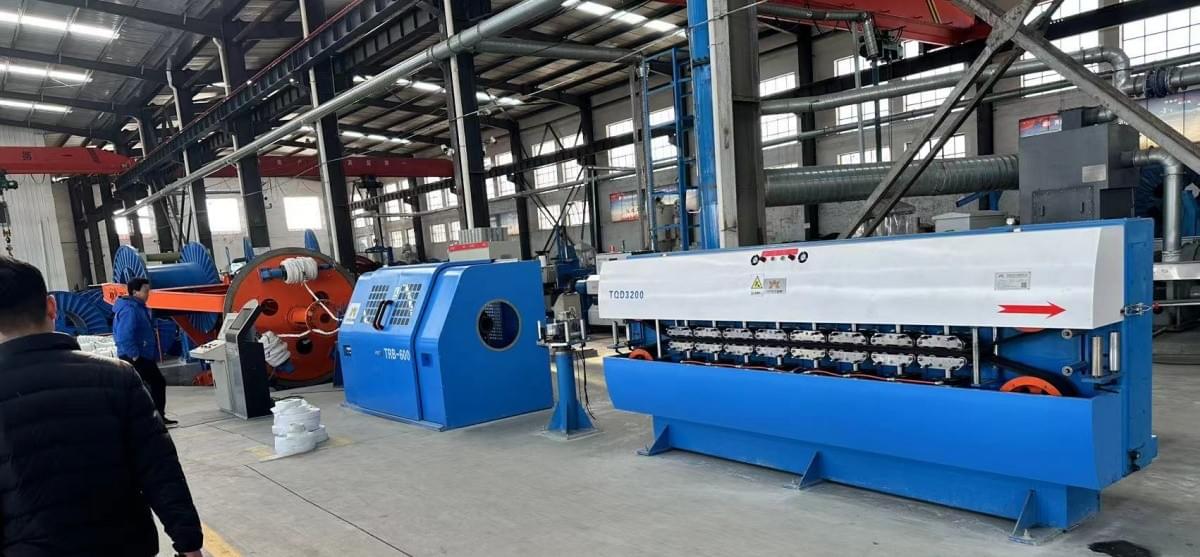

Super High Speed Rotation Speed 50r/min of Cable Laying Machine
Explore the benefits of our Super High Speed Rotation Cable Laying Machine and discover how it can transform your cable manufacturing process.

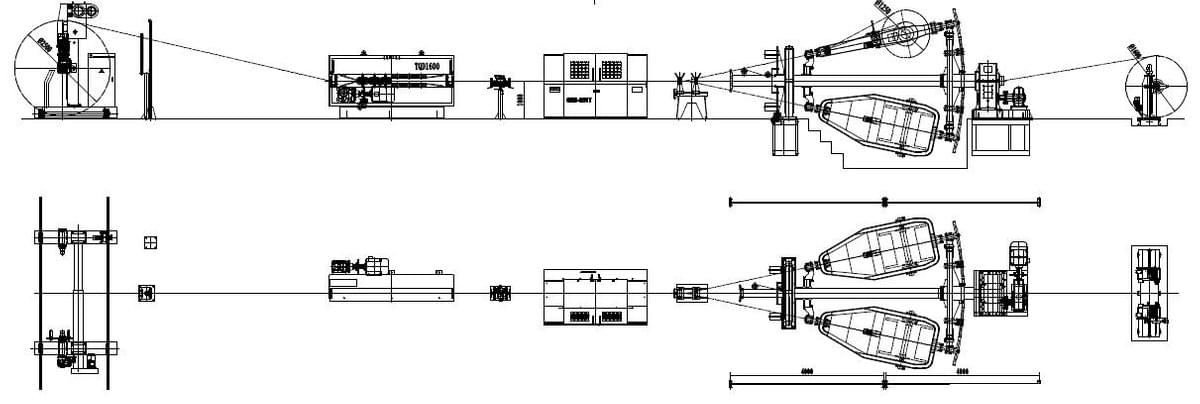

Layout of Laying-up Machine

CLY-1250/1+1+3 Cradle laying-up machine with individual motor driving and portal take-up with traverse stand, caterpillar and non-metallic wrapping machine. max rotating speed 50r/min.
Technical Parameter of Cradle Type Cabling Machine
Key Features of Cradle Type Cabling Machine

Stable and Durable Design:
The cradle-style frame ensures stability during operation, reducing vibration and improving accuracy.
Built with robust materials for long-term reliability.
High-Speed Operation:
Capable of operating at speeds up to 35 m/min, ensuring high productivity for large-scale production.
Precision Tension Control:
Advanced tension control systems maintain consistent wire tension, ensuring uniform cable quality.
Versatile Applications:
Suitable for producing a wide range of cables, including power cables, communication cables, and specialty wires.
Customizable Configurations:
Available with adjustable settings to meet specific production requirements, such as wire diameter range and stranding patterns.
Running Work Video of Cradle Cabling Machine
Max rotating speed can reach 50r/min.
Pitch infinite adjustment on PLC.
All Siemens motor,Schneider eletric,
Inovance inverter. Siemens PLC, HMI.
Non-metallic taping machine
Metal steel tape wrapping machine
Filling rack on stranding cage
Name

Email

Comment
NON-METALLIC TAPING
MANUAL CLAMPING
METALLIC TAPING UNIT
ELECTRICAL CLAMPING
FILLING ROPE STAND
ROTATING PAY-OFF
PNEUMATIC CATERPILLAR
CLOSING WIRE HOLDER
NON-METALLIC TAPING
FILLING ROPE STAND
MANUAL CLAMPING
ROTATING PAY-OFF
METALLIC TAPING UNIT
PNEUMATIC CATERPILLAR
ELECTRICAL CLAMPING
CLOSING WIRE HOLDER
The Model of Laying-up Machine – Explore Our Range of High-Performance Solutions
Planetary Type Cabling machine CLY1250/1+6
Small Drum Type Cabling Laying Machine CLY-1250/1+4 For Sectorial Cable
Tipo de berço 1250/1+1+3 Torcedeira planetária
CLY-1400/1+6 LÍNEAS DE REUNIDO Y DE CABLEADO
CLY-1250/1+4 Laying Up Type Electric Cable Production Line
High Speed 1250/1+1+3 Cradle Type Laying-up Machine
JLY-630-1+3+3 Planetary Atranding Machine Laying-up Machine
Multi Core Power Cable Making Machine Cradle Type Cable Laying Machine 1+6/800
CLY-1250/3+2 Cradle Type Cabling Machine/ Laying Up Machine
Planetary Type Cable Laying Machine PND1250/1+6 Bobbin
CLY-1250/1+4 Planetary Type Laying up Machine For Stranding Power Cable
CLY1250/3+1+1 Automatic Cradle Type Cable Laying-up Machine With Electrical Clamping
Frequently Asked Questions (FAQ) About Cable Laying Machine
Our laying-up machines are designed to meet the diverse needs of cable manufacturers, offering precision, efficiency, and reliability. Whether you’re producing power cables, communication cables, or specialty wires, we have the perfect model for your production requirements.
How to get price of cable laying machine from us?
Wire type and insulated wire diameter range.
Stranding cage,like 1+3,1+1+3 or 1+6 etc.
Add add taping and armouring function.
What type of driving of laying up machine?
Individual motor driving or ground shaft driving, one is high spee, one is comm speed.
Why Choose Our Cable Laying Machine with 50r/min Rotation Speed?
High Speed, High Precision: Achieves exceptional speed without compromising quality.
Customizable Solutions: Tailored configurations to meet your specific production needs.
Energy Efficiency: Reduces operational costs while maintaining high performance.
Global Standards: Meets international quality and performance standards
What different of independent and ground shaft driving?
Independent motor driving can reach 50RMP, and lay length can set on PLC. but the ground driving is about 21-3RMP.
What advantage of our cradle laying up machine?
The main winch cage has the function of back twisting and pre-twisting. The planetary gear structure is adopted to realize 100% back twisting. The pre-twisting form is on-line non-stop pre-twisting. That is to say, in the process of cable laying, each cradle can be adjusted forward and backward under the running state of the unit, which makes the cabling process of fan-shaped line more convenient and efficient.
The inner pay off frame in the winch cage is of sheet welding structure, which is cut by CNC laser cutting machine. After the whole welding is completed, the internal stress is eliminated by annealing treatment, and then it is processed by machine tool. The overall structure has high strength, durability and no deformation.
Pay off tension: mechanical friction is used to provide the tension required for stringing, and the tension is manually adjusted.
Main engine brake device: multi plane air brake is used to brake the whole machine at the same time, and the braking is efficient
Can your cable forming machine twist sector cables?
Yes. when you making section cable, only add pre-twist device and rotating center back-pay-off, like 1+1 rotating pay-off stand.
