Planetary Type Cabling machine CLY1250/1+6

Planetary Type Cabling machine CLY1250/1+6

Application:
This machine is mainly used for twisting 7 core with round power cable, meanwhile equipped the functions of filling rope, non-metallic wrapping and steel tape armouring.
More Details

Planetary Type Cabling machine CLY1250/1+6Planetary Type Cabling machine CLY1250/1+6

1.Application:
This machine is mainly used for twisting 7 core with round power cable, meanwhile equipped the functions of filling rope, non-metallic wrapping and steel tape armouring.

2. Main technical parameter:

Input wire diameter:Ø8.0- Ø30mm
Stranding cage max rotation speed:25r/min (Stepless adjustable)
Max lay-up diameter:Ø100mm
Lay-up pitch:1000-3600mm (Stepless adjustable)
Non-metallic Taping head rotation speed:650r/min
Non-metallic taping pitch:16-269mm (Steplss adjustable)
Metallic Taping head rotation speed:550r/min
Metallic taping pitch:14-226mm (Steplss adjustable)
Max linear speed:77.7m/min
Max haul-off pulling force:2000kg
Central pay-off bobbin size:PN1250
Pay-off bobbin in cage:PN800-PN1250
Take-up bobbin size:PN1250-PN2500
Main stranding cage motor power:45KW(AC)
Haul-off motor power:22kw (AC)
Non-metallic taping head motor power:7.5KW (AC)
Metallic taping head motor power:18.5KW (AC)
Take-up Motor power:5.5KW (AC)
Full line length :32m

3. Main components:

Ø1250 No foundation Column pay-off
Ø1250/6 bobbins stranding cage
Double row closing wire die holder
Ø500x3 Pads Non-metallic taping machine
Ø630x2 Pads Metallic taping machine
2000kg pnuematic caterpillar
Mechanical&Electronic Meter counter
Ø2500 Portal take-up with traverse wire
Electronic control system
Safety protection device

4. Main cage decribtion:

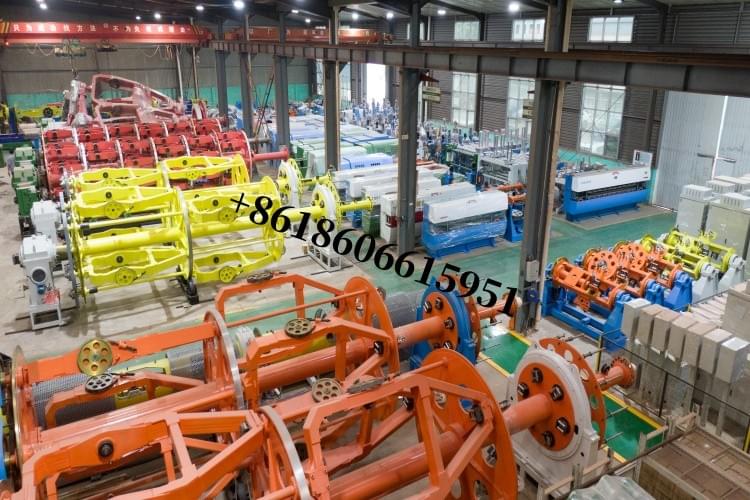

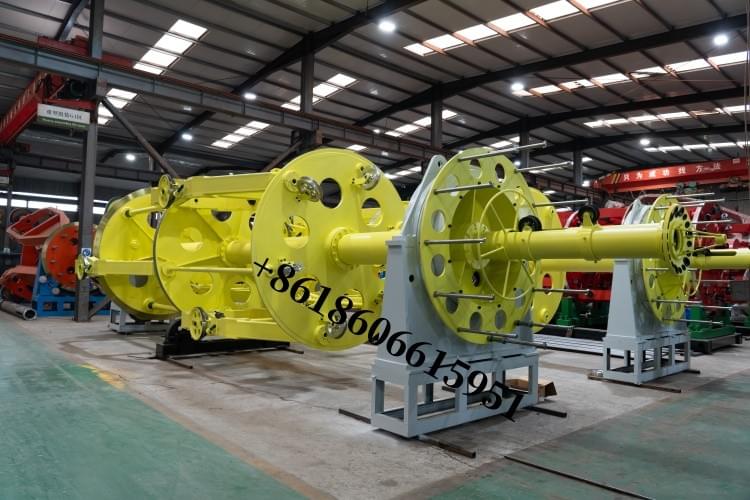

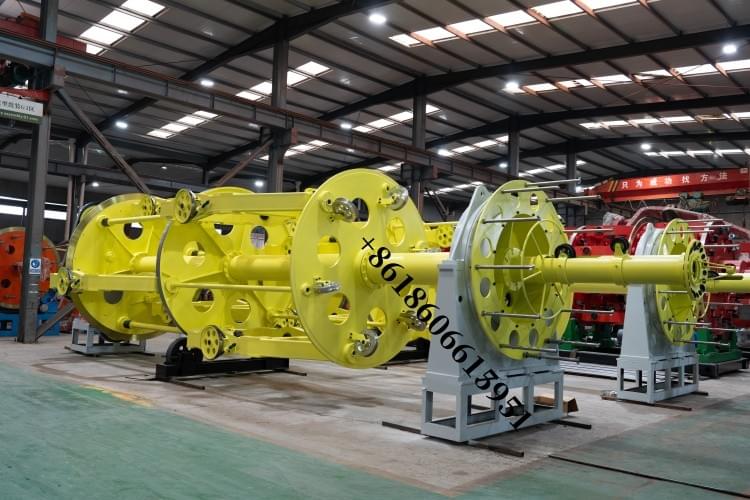

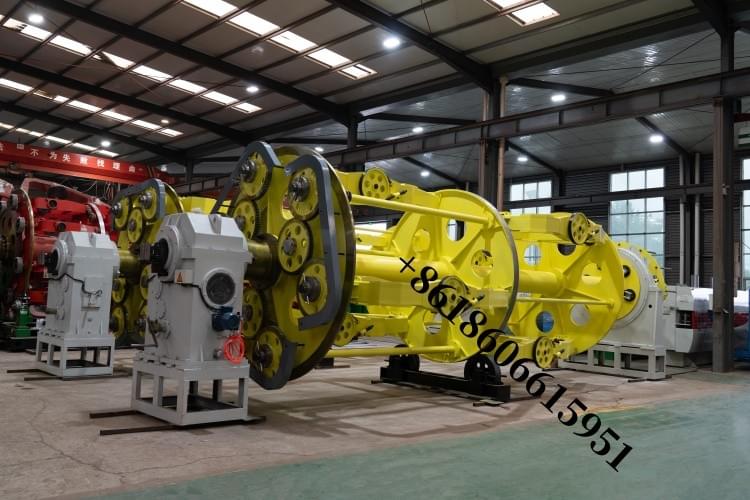

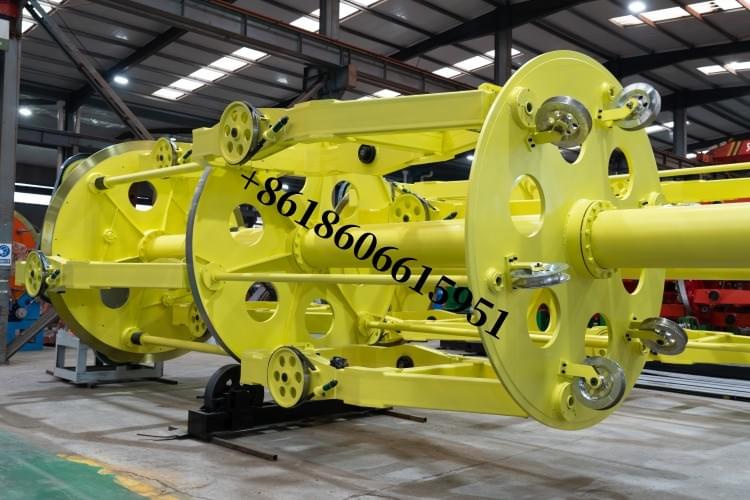

Ø1250/6 bobbins stranding cage:
 Pay-off reel specification: PN1250
Max load wire capacity: 3T
 Max speed of stranding cage: 25r/min (steplessly adjustable)
 Reel back-twisting speed: 25r/min
Motor power of main stranding cage: 45KW (AC variable frequency motor)
The main stranding cage is composed of a drive gearbox, a 6-reel stranding cage frame, a tugboat group, a stranding cage base, a filling rack, etc.
The main stranding cage adopts planetary gear back-twisting, which can achieve back-twisting or non-back-twisting twisting. (The gear group has a protective cover)
 The pay-off adopts a steel plate welded structure, a shaftless manual clamping and release reel, a mechanical locking structure, and a pay-off tension mechanical friction control, which can be adjusted.
 The front of stranding cage equipped 12  set filling racks and 3xØ800 filling bar racks.
The main stranding cage is a parallel structure with 3+3 structure.
The reel cradles are evenly distributed on the same circumference, with a two-stage structure. The inlet and outlet ends are supported by spherical roller bearings. The main shaft is a high-quality seamless steel pipe, and the large and small pressure plates are connected to the main shaft by a combination of flat keys and expansion sleeves. The large pressure plates are welded parts and annealed. They are driven by a separate AC variable frequency motor with a slow positioning drive device, variable frequency control, and have left and right rotation functions.
All reel cradle are use manual clamping and loosening with mechanical locking protection function.
The wire tension is mechanically friction controlled, and the tension is manually adjusted.
The stranding cage uses a caliper pneumatic brake device.

Planetary Type Cabling machine CLY1250/1+6


Planetary Type Cabling machine CLY1250/1+6


Planetary Type Cabling machine CLY1250/1+6


Planetary Type Cabling machine CLY1250/1+6



5. Electrical Control
The power supply of this machine is: three-phase five-wire system, 440V, 60Hz, single-phase control voltage 220V.
The whole machine linkage adopts field bus control, and uses PLC and touch screen to coordinate the operation of each part of the motor.
Various process parameters can be set, modified and displayed on the touch screen.
This machine is equipped with the following protection links
Fault alarm of each speed regulating device;
Cable overtravel protection;
Protective cover safety protection;
Tape break protection;
Air underpressure protection

Low voltage appliance brand    (SCHNEIDER)
Brand of pneumatic component    (AIRTAC)
Pay-off &Take-up motor brand    (JIANGHUAI)
Inverter    (INOVANCE)
PLC    (SIEMENS)
Touch screen    (SIEMENS)
Main Bearing brand    (HRB)
