What machines are needed to produce house wires?

House wire is generally composed of 1 to 16 square strands of copperwire or insulated wire, which is mainly used in family life. Due to the smalldiameter range of products, not many machines are required. Next, I mainlyintroduce two schemes of hous production line;

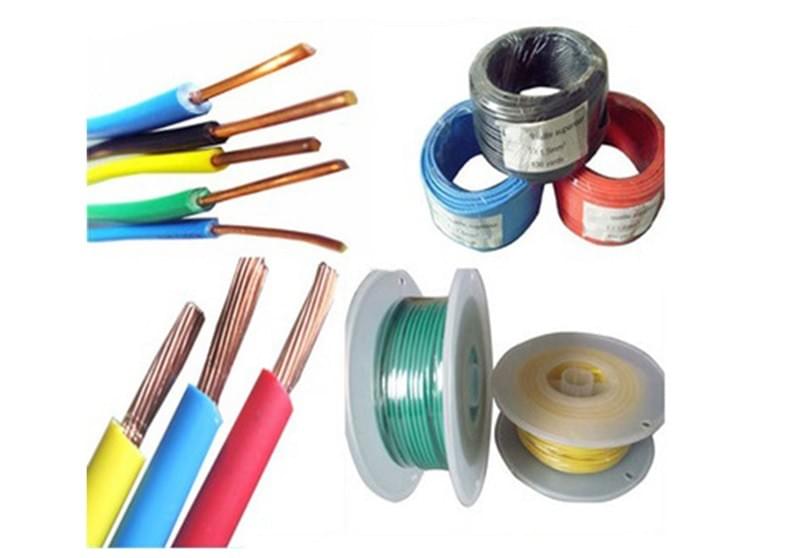

house wire from capstian technology

Option1: Bunching- extruding-cabling- extruding.

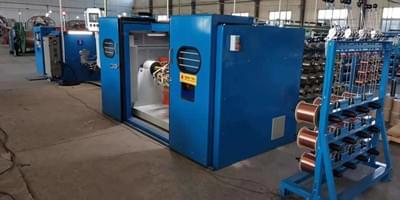

Step 1: 630 wire bunchingmachine+120 head pay-off.

Suitablefor copper wire stranding of Power cable,Lan cable,Automatic cable,Electricalwire,Date cable,Earphone cable etc.Apply for the twisting of above seven pcs ofbare wires,tinned wires,sliver jacket wires and enameled wires etc.

broken image

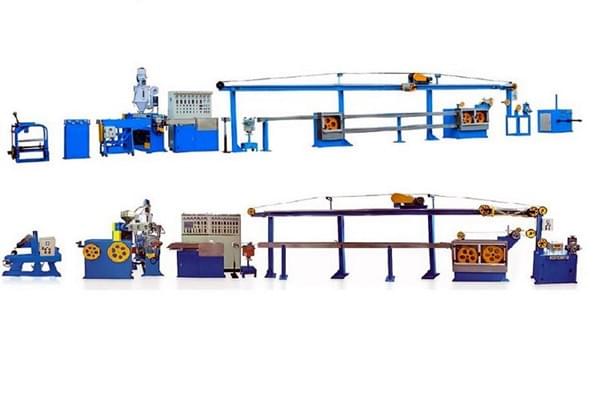

Step 2: SJ50+35Cable extruder.

Main manufacturinginner insulation layer, double layer or double color wire.

broken image

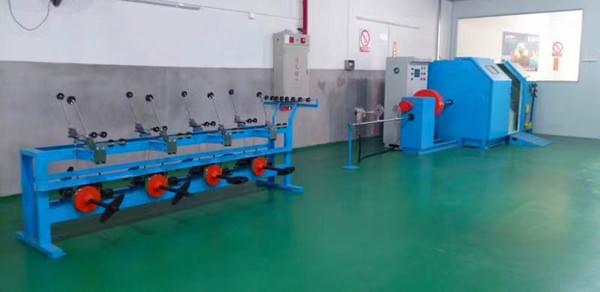

Step 3: 800-1000 cantileversingle twisting machine.

Equipment usage: Thismachine is generally used for PVC, PE cable, power line, coaxial cable, SJT,SVT cable stranding. The stranding pitch isset at 30 ~ 200 mm, which is controlled by rsc-401 stranding distance meter to realize the effect of stable stranding distance and convenient adjustment.

broken image

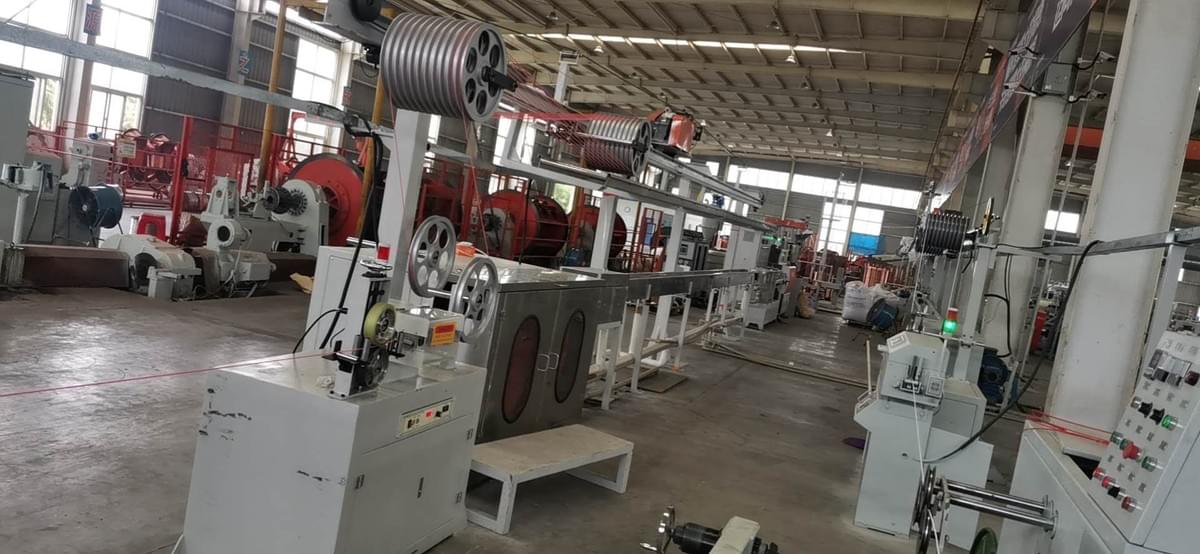

Step 4. SJ70 Cable extruder.

The unit is suitable for sheathing wire and cable by hot extrusion of thermoplastic cable materials such as polyvinyl chloride(PVC), low-smoke and halogen-free.

broken image
